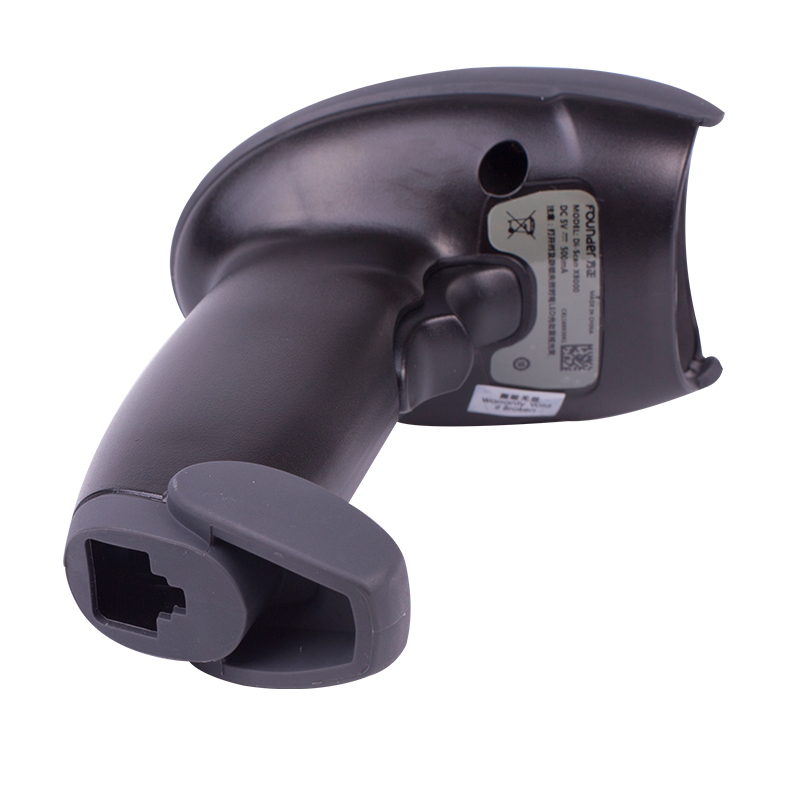

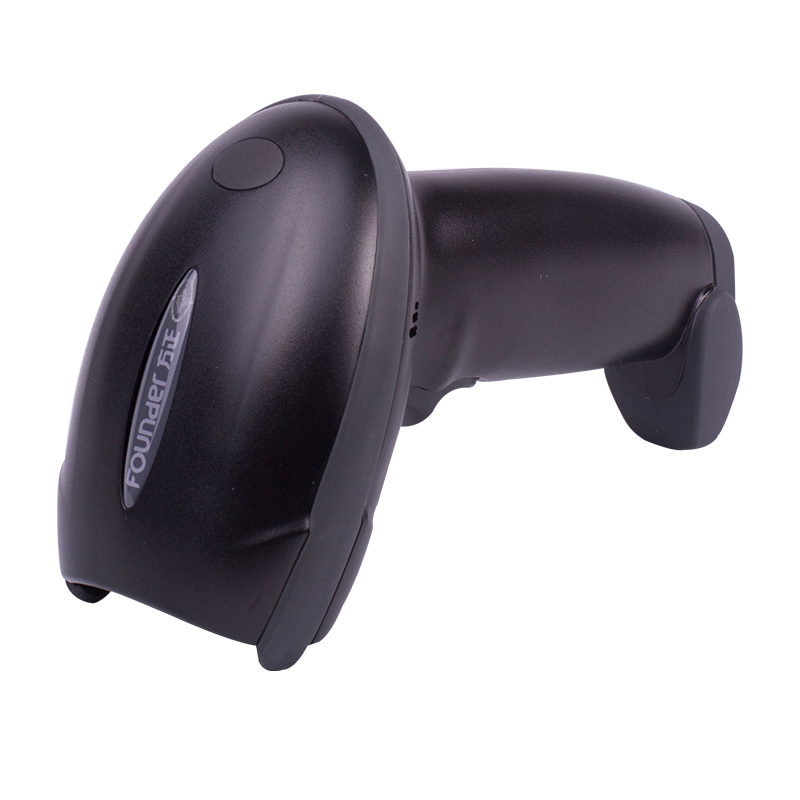

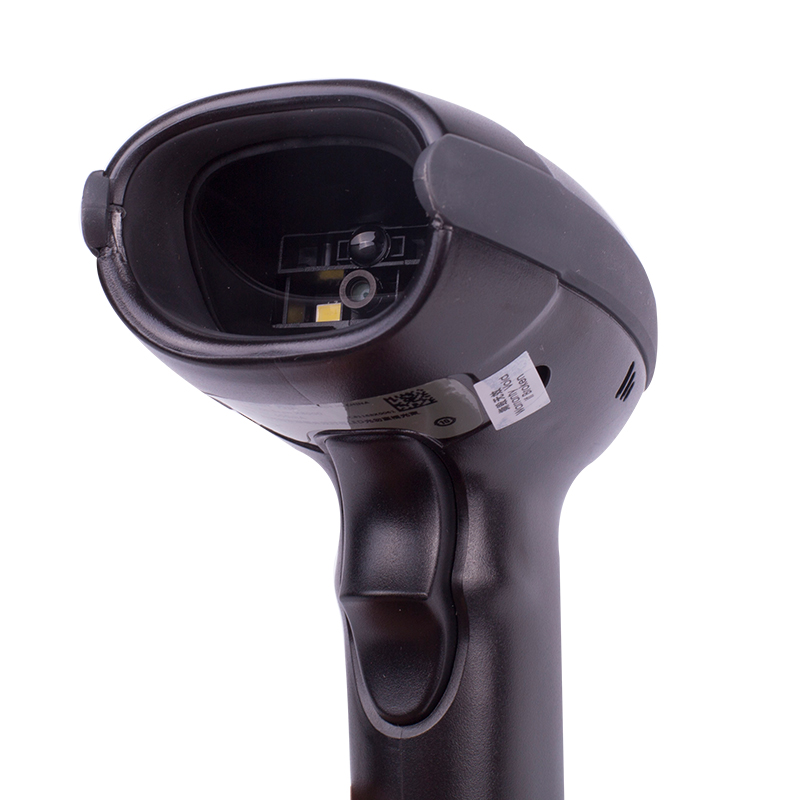

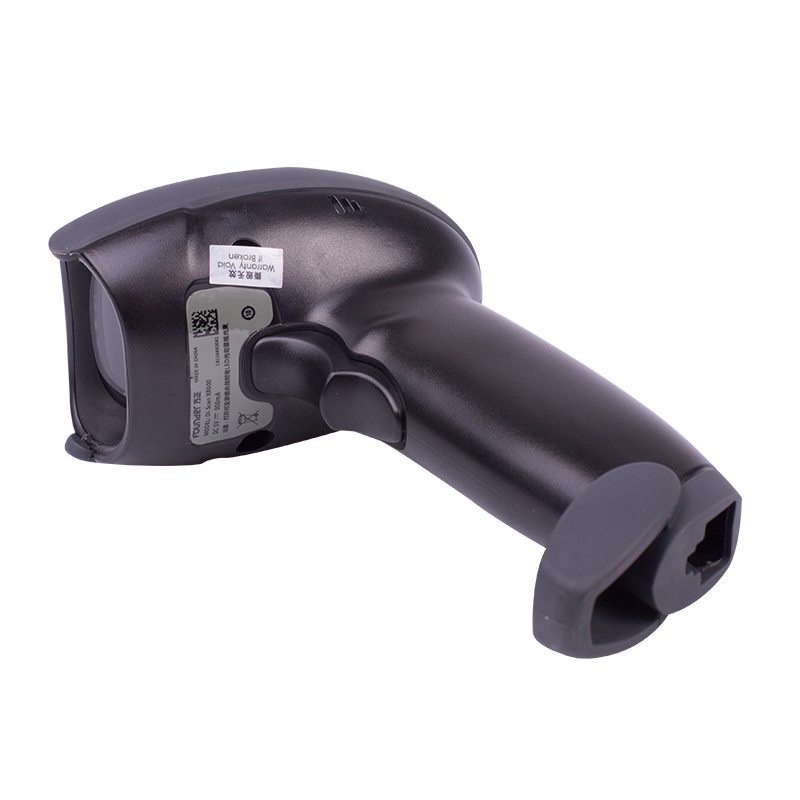

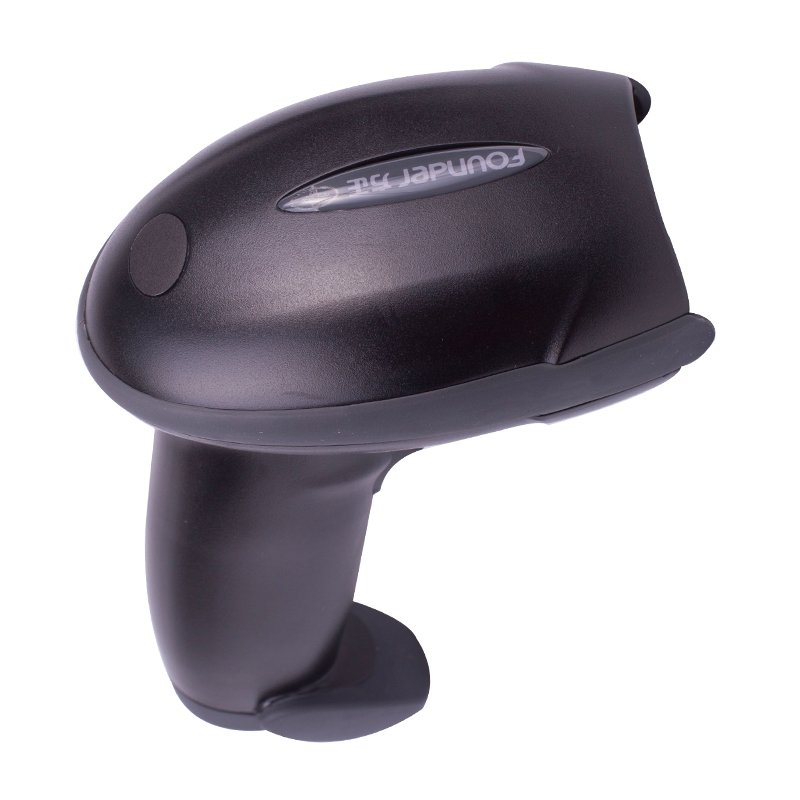

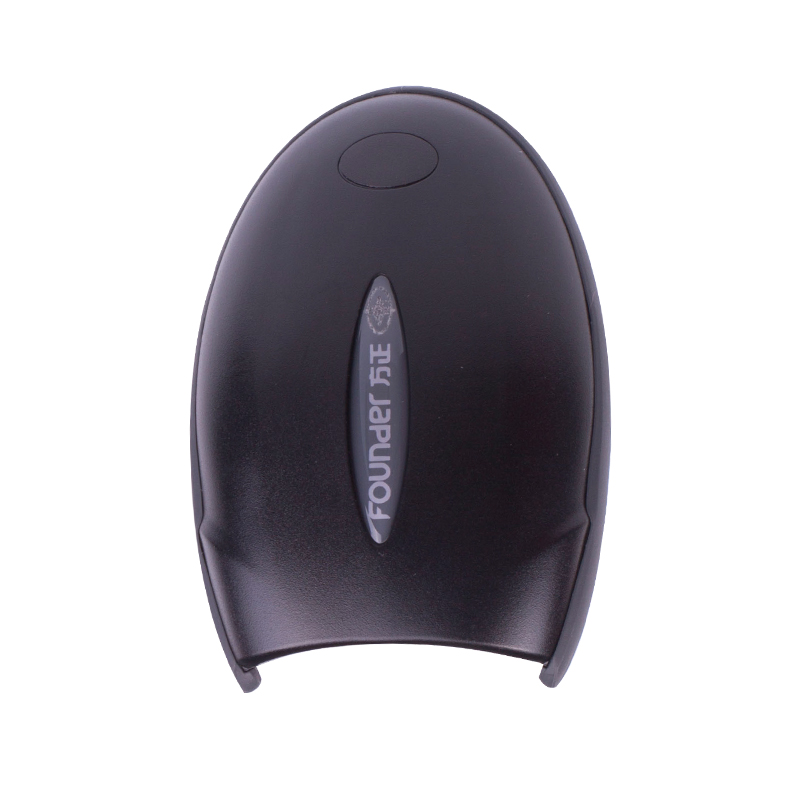

产品图片:
产品标题:威廉希尔扫描枪X5000
产品报价:
产品特点:
二维码的应用越来越多，从工业追溯到商业应用，其载体信息量大，占用空间小的优点日益突显。许多企事业单 位正在经历被动或主动的引入二维码，实现从一维码到二维码的硬件和软件设备升级。
X5000采用蓝牙无线技术，能够实现与基站距离100米范围内的自动移动。X5000的电池管理系统能提供电池效力高达12小时不间断的扫描，最大程度的提高了生产力。
出于耐用性的考虑，X5000无线扫描枪的设计可以承受从1.5米高的地方到混泥土地面的50次反复跌落。IP42工业等级也为产品提供了额外的保护解释的构造确保二维码无线扫描枪可以实现多年无间断操作的卓越性能。
应用范围：
零售业包含 POS，制造业，在制品追踪，文本处理，自助服务亭、医疗和诊断仪器、彩票终端等等 方面。
特点特征：
l 精确的红光瞄准器
l 大视角影像感光器
l 高速，全方向的一维、二维码影像读取
l 自动或手动触发
l 可选的蜂鸣器音调
l 手机屏幕条码读取
l 有白色和黑色外壳可选
l 外壳坚固可靠
l 符合人体工程学的设计
l 可连接底座，apple, androids 手机平板电脑等
l 电池容量2500mha, 快充和无线充电可选
l 100米超远距离蓝牙传输
参数规格:
Physical Characteristics |
Dimensions: | 18 cm H x 10.7cm L x 7 cm W |
|
Weight: | 160g |
|
Voltage and Current: | 5 VDC +/-10% @ 400 mA |
|
Performance Characteristics |
Image (Pixels): | 640 pixels (H)x 480 pixels (V) |
|
Light Source: | Aiming: 617 nm LED; illumination: 6500K LED |
Field of View: | 40° (H) x 26° (V) |
|
Roll / Pitch / Yaw: | 360°, ±65°, ±60° |
|
Battery volume | 3.7/2000ma |
|
Charging time | 6-8h wireless, 3-4h wired |
|
Wireless technology | Bluetooth v2.1 |
|
Operation distance | 200 meters (open space) | w/ memory for disconnection storage |
Print Contrast: | 25% minimum reflective difference |
|
Symbology Decode Capability |
1-D: | UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat |
2-D: | PDF417, MicroPDF417, ,Data Matrix, Maxicode, QR Code, MicroQR, Aztec etc. |
Motion Tolerances: | up to 25 in. (63.5 cm) per second |
|
Interfaces Supported: | USB, RS232 |
|
User Environment |
Operating Temperature: | 32° to 122° F / 0° to 50° C |
|
Storage Temperature: | -40° to 158° F / -40° to 70° C |
|
Humidity: | 5% to 95%, non-condensing |
|
Drop/Shock Specifications: | Withstands multiple 1.5m(6ft.) drops to concrete |
Ambient Light Immunity: | Immune to normal indoor lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux. |
Decode Ranges |
Symbol & Density |
| Range |
Code 39 (5 mil) |
| 40mm-110mm |
100%UPCA (13 mil) |
| 5mm-280mm |
Code 39 (20 mil) |
| 15mm-330mm |
PDF417 (6.8mil) |
| 20mm-130mm |
DataMatrix (10mil) |
| 10mm-110mm |
QR Code (20mil) |
| 5mm-230mm |
Resolution 1D Code 39 |
| 4.8mil (0.122mm) |
Resolution 2D Data Matrix |
| 6.6mil (0.168mm) |
Performance may be impacted by bar code quality and environmental conditions |
